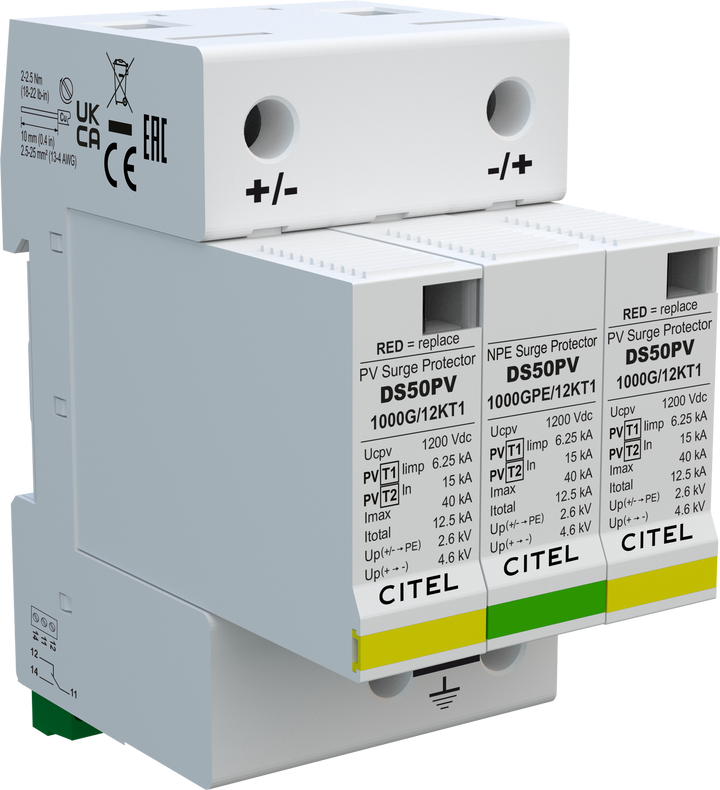

Surge Protector Citel DS50PVS-1000G/12KT1 Type 1+2 surge protector for Photovoltaic
Price Excl. Tax
Shipping & Tax calculated at checkout
Article Number: 15747
|
SPD type
|
1+2 | |
|
Network
|
PV network 1000 Vdc | |
|
Nominal PV voltage
|
Uocstc | 1000 Vdc |
|
Max. PV operating voltage
|
Ucpv | 1200 Vdc |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
PV Permanent Operating current
Current consumption at Ucpv
|
Icpv | < 0.1 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 15 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 60 kA |
|
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 6.25 kA |
|
Total lightning current
max. total withstand @ 10/350µs
|
Itotal | 12.5 kA |
|
Current withstand short circuit PV
|
Iscpv | 15 000 A |
|
Connection mode(s)
|
+/-/PE | |
|
Protection mode(s)
|
Common/Differential mode | |
|
Protection level +/-
@ In (8/20µs)
|
Up | 4.6 kV |
|
Protection level +/PE (-/PE)
@ In (8/20µs)
|
Up | 2.6 kV |
Product Description
Type 1 + 2 surge protection (SPD) DS50PV/12KT1 are intended for the protection of photovoltaic power grids. The SPD cartridges are pluggable to ensure quick replacement in the event of a defect. The protection circuit consists of a fault-resistant Y-circuit with a gas discharge tube and high-power varistors. The products are available with a remote signaling system of the state of the surge protector.
