Staubli MC4 stekker PV-SP4/6 contact for QK=4/6 mm²
Price Excl. Tax
Shipping & Tax calculated at checkout
Reviews
Minimum order quantity 25 sets
1 - unit connector price Rs 200/-
25- units connectors set Rs 7200/-
Article No: 15780
Product Description

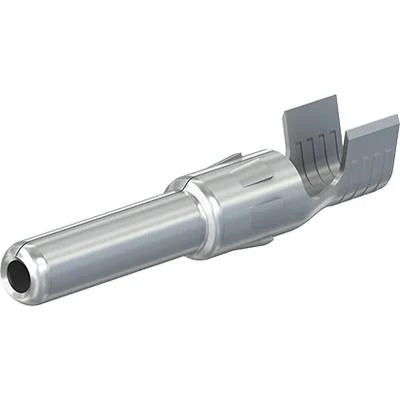

contact for Stäubli MC4 connector 6 mm²
These are individual contacts for the
Stäubli MC4 connector
PV-KST4 / 6I-UR and PV-KST4 / 6II-UR.
The contacts are based on Stäubli's patented MULTILAM technology.
Maximum system voltage 1000V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 5.0 to 8.8 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Nominal current TÜV: 39 A (4 mm² / 6 mm²)
Nominal current UL: 30 A (12 AWG / 10 AWG
These are individual contacts for the
Stäubli MC4 connector
PV-KST4 / 6I-UR and PV-KST4 / 6II-UR.
The contacts are based on Stäubli's patented MULTILAM technology.
Maximum system voltage 1000V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 5.0 to 8.8 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Nominal current TÜV: 39 A (4 mm² / 6 mm²)
Nominal current UL: 30 A (12 AWG / 10 AWG
