Staubli MC4-Evo2 stekker PV - SP 4/6 Contact for QK = 4/6 mm²
Price Excl. Tax
Shipping & Tax calculated at checkout
Reviews
Minimum order quantity 25 sets
1 - unit connector price Rs 288/-
25- units connectors set Rs 7200/-
Article No: 15775
Product Description

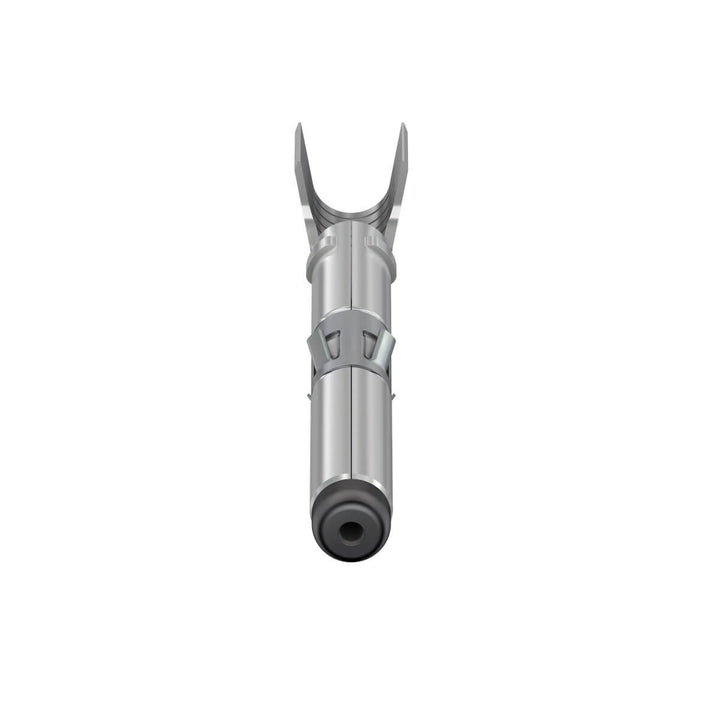

contact for Stäubli MC4-Evo2 plug 6 mm²
These are individual contacts for the
Stäubli MC4-Evo2 connector
PV-KST4-EVO 2/6I-UR and PV-KST4-EVO 2/6II-UR.
The contacts are based on Stäubli's patented MULTILAM technology.
Maximum system voltage 1500V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 4.7 to 8.4 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Nominal current TÜV: 45 A (4 mm²) and 53 A (6 mm²)
These are individual contacts for the
Stäubli MC4-Evo2 connector
PV-KST4-EVO 2/6I-UR and PV-KST4-EVO 2/6II-UR.
The contacts are based on Stäubli's patented MULTILAM technology.
Maximum system voltage 1500V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 4.7 to 8.4 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Nominal current TÜV: 45 A (4 mm²) and 53 A (6 mm²)
Downloads
Staubli MC4-Evo2 stekker PV - SP 4/6 Contact for QK = 4/6 mm²
Rs.7,200.00
