Staubli MC4-Evo2 bus PV - BP 4/6 Contact for QK = 4/6 mm²
Contact us for order this product
Contact for QK = 4/6 mm² Minimum order quantity 50 sets 1 - unit connector price Rs 602/- Article No: 15775 Technical information : Type of DC connection EVO2 Imax [A]...
Reviews
Contact for QK = 4/6 mm²
Minimum order quantity 50 sets
1 - unit connector price Rs 602/-
Article No: 15775
Technical information |
: |
| Type of DC connection | EVO2 |
|
Imax [A]
|
45 BIS 53 |
|
Max. Cable cross-section [mm²]
|
6 |
|
Minimum pipe cross-section (mm²)
|
4 |
Product Description

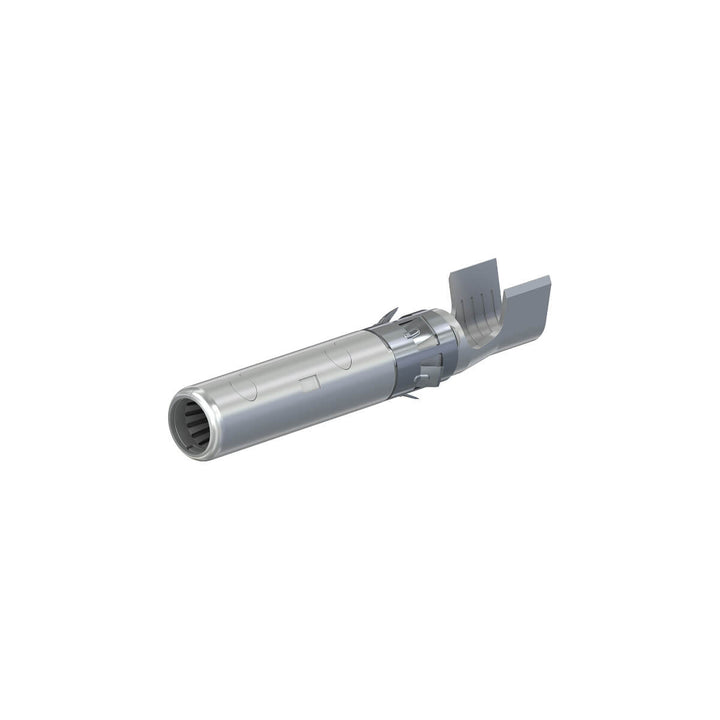

contact for Stäubli MC4-Evo2bus 6 mm²
These are individual contacts for the
Stäubli MC4-Evo2 connector
PV-KBT4-EVO 2/6I-UR and PV-KBT4-EVO 2/6II-UR.
The contacts are based on Stäubli's patented MULTILAM technology.
Maximum system voltage 1500V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 4.7 to 8.4 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Nominal current TÜV: 45 A (4 mm²) and 53 A (6 mm²)
These are individual contacts for the
Stäubli MC4-Evo2 connector
PV-KBT4-EVO 2/6I-UR and PV-KBT4-EVO 2/6II-UR.
The contacts are based on Stäubli's patented MULTILAM technology.
Maximum system voltage 1500V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 4.7 to 8.4 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Nominal current TÜV: 45 A (4 mm²) and 53 A (6 mm²)
