Staubli MC4 bus PV-BP 4/6 contact for QK = 4/6 mm²
Contact us for order this product
contact for QK = 4/6 mm² Minimum order quantity 50 sets 1 - unit connector price Rs 598/- Article No: 15780 Technical information : Type of DC connection MC4 Imax [A]...
Reviews
contact for QK = 4/6 mm²
Minimum order quantity 50 sets
1 - unit connector price Rs 598/-
Article No: 15780
Technical information |
: |
| Type of DC connection | MC4 |
|
Imax [A]
|
39 |
|
Max. Cable cross-section [mm²]
|
6 |
|
Minimum pipe cross-section (mm²)
|
4 |
Product Description

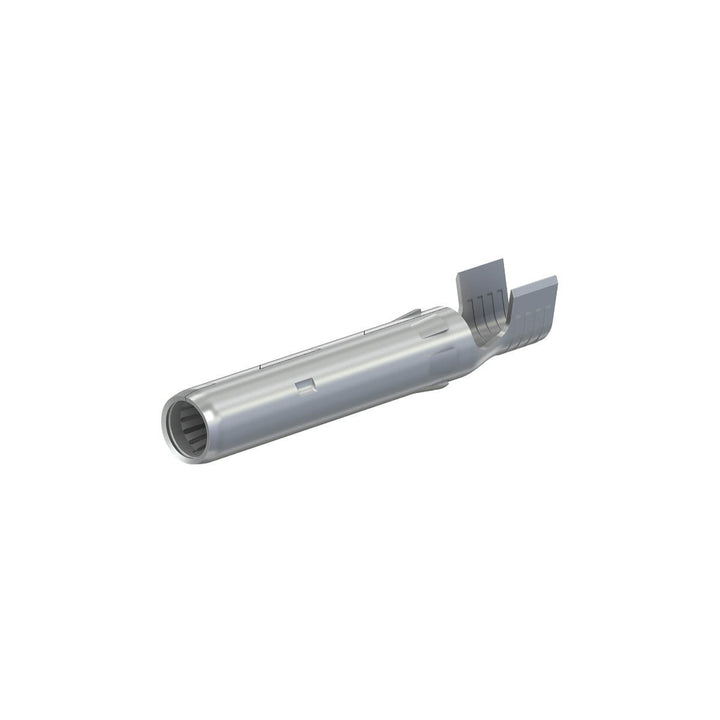

contact for Stäubli MC4 socket 6 mm²
These are individual contacts for the
Stäubli MC4 connector
PV-KBT4 / 6I-UR and PV-KBT4 / 6II-UR.
The contacts are based on Stäubli's patented MULTILAM technology.
Maximum system voltage 1000V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 5.0 to 8.8 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Nominal current TÜV: 39 A (4 mm² / 6 mm²)
Nominal current UL: 30 A (12 AWG / 10 AWG)
These are individual contacts for the
Stäubli MC4 connector
PV-KBT4 / 6I-UR and PV-KBT4 / 6II-UR.
The contacts are based on Stäubli's patented MULTILAM technology.
Maximum system voltage 1000V (TÜV) and 1500V (UL).
Suitable for Ø cable glands from 5.0 to 8.8 mm
and a conductor cross-section of 4 or 6 mm² (12; 10 AWG)
Nominal current TÜV: 39 A (4 mm² / 6 mm²)
Nominal current UL: 30 A (12 AWG / 10 AWG)
