Solis Three-phase meter for EPM Including 3 CTs

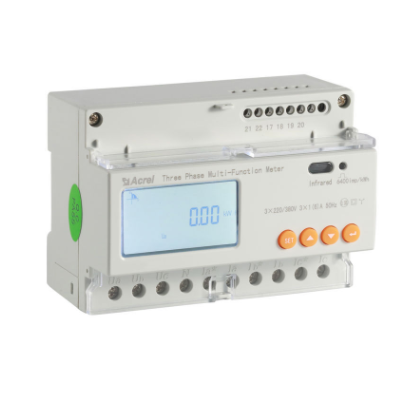

Solis three-phase meter including CTs

The Solis three-phase meter is used to limit the export capacity of your PV system. The meter parameters are preconfigured for direct installation on site. Make sure to disconnect the power before installing the meter to prevent the risk of electric shocks. Connect the ‘Ua’, ‘Ub’ and ‘Uc’ terminals to the mains L1 to L3 terminals. The red CT cable must be connected to the ‘la*’, ‘lb*’ and ‘lc*’ terminals and the black cable to the ‘la’, ‘lb’, ‘lc’ terminals. The CT arrow should point towards the load.

This three-phase meter is compatible with the following Solis inverters:

• Solis-3P (5-20) K-4G

Solis-3P-Meter-CT-3 product data

• Grid topology 3P+N
• Rated voltage 3 x 220V/380V
• Input current 3 x 1(6)A (external CTs)
• Dimensions 126.5 x 88.2 x 69.5mm
