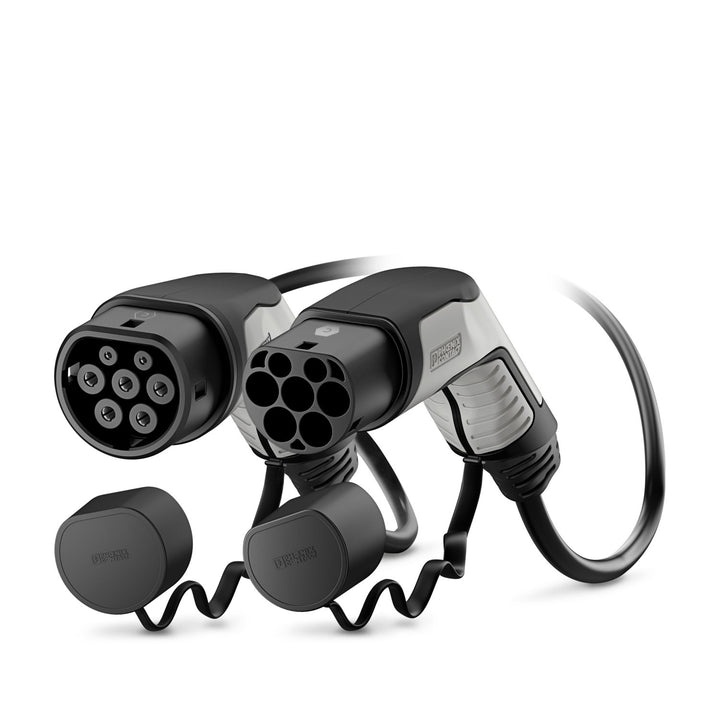

Phoenix contact EV-T2G3PC-3AC32A-4,0M6,0ESBK01 - AC charging cable
Contact us for order this product
Article number : 157746 Reference: EV-T2G3PC-3AC32A-4,0M6,0ESBK01 - AC charging cable / 1623509 Mobile AC charging cable with vehicle charging connector and infrastructure charging plug for charging electric vehicles (EV) with alternating current (AC) via...
Article number : 157746
EV-T2G3PC-3AC32A-4,0M6,0ESBK01 - AC charging cable / 1623509
Mobile AC charging cable with vehicle charging connector and infrastructure charging plug for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets, compatible with type 2 infrastructure charging sockets at charging stations for e-mobility (EVSE)
Product type
Made in: Germany
Type 2
AC charging cable
Mobile AC charging cable
with protective cap
Type of signal transmission
Pulse width modulation
Charging power
26.6 kW
Charging current
32 A

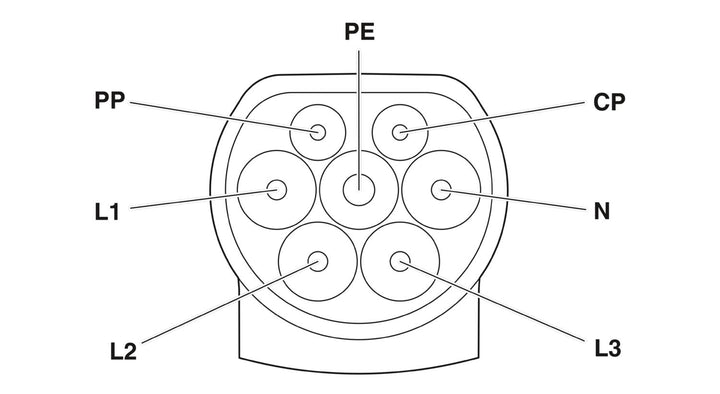

Power contact
Number: 5 (L1, L2, L3, N, PE)
Rated voltage: 480 V AC
Rated current: 32 A
Material (Cable outer sheath)
TPE-U
Cable weight: max. 505.00 kg/km
Cable type : Class 5
Cable type: straight
Cable structure: 5 x 4.0 mm² + 1 x 0.5 mm²
External cable diameter: 14.20 mm ±0.3 mm
Cable resistance: ≤ 0.00425 Ω/m (based on a power core, at an ambient temperature of 20°C)
Bending radius: min. 127.5 mm (7.5x diameter)
Application
for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets
compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE)
