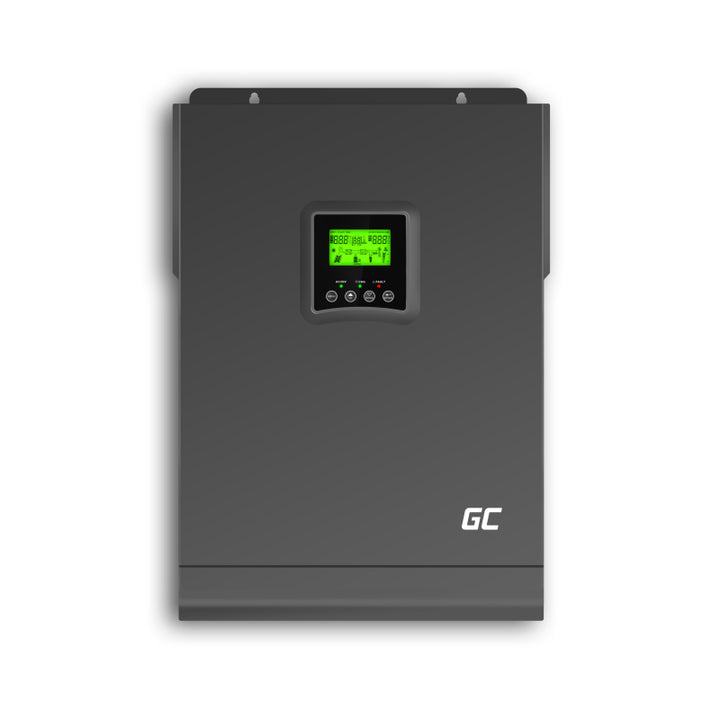

Solar inverter Off Grid with MPPT solar charger Green Cell 48VDC 230VAC 3000VA/3000W Pure Sine wave
Contact us for order this product
Contact us for availably and quotation Article No: 149149 Solar inverter Off Grid with MPPT solar charger Green Cell 48VDC 230VAC 3000VA/3000W Pure Sine wave Product information INVSOL04 Specification Warranty 12...
Reviews
Contact us for availably and quotation
Article No: 149149
Solar inverter Off Grid with MPPT solar charger Green Cell 48VDC 230VAC 3000VA/3000W Pure Sine wave
Product information INVSOL04
Specification
| Warranty | 12 months |
| Product code | INVSOL04 |
| Size | 297,5 X 468 X 125 mm |
| Weight | 13.3kg |
| Output Voltage | 230V AC |
| Output frequency | 50Hz / 60Hz |
| Shape of the output voltage | Pure Sinusoid |
| Efficiency | 98% |
| Usable power (continuous) | 3000W |
| Instantaneous power (impulsive) | 6000W |
| Pobór mocy (bez obciążenia) | 2W |
| Battery voltage | 48V |
| Maximum PV voltage (VOC) | 145VDC |
| Inverter efficiency | 90% - 93% |
| AC voltage adjustment (battery mode) | 220VAC - 240VAC (adjustable) |
| Charging voltage | 54.8V |
| PV voltage range for MPPT | 60-130VDC |
| Maximum PV power | 4000W |
| Maximum MPPT output current | 80A |
Downloads
Solar inverter Off Grid with MPPT solar charger Green Cell 48VDC 230VAC 3000VA/3000W Pure Sine wave
Rs.298,000.00
