Article number : 157752

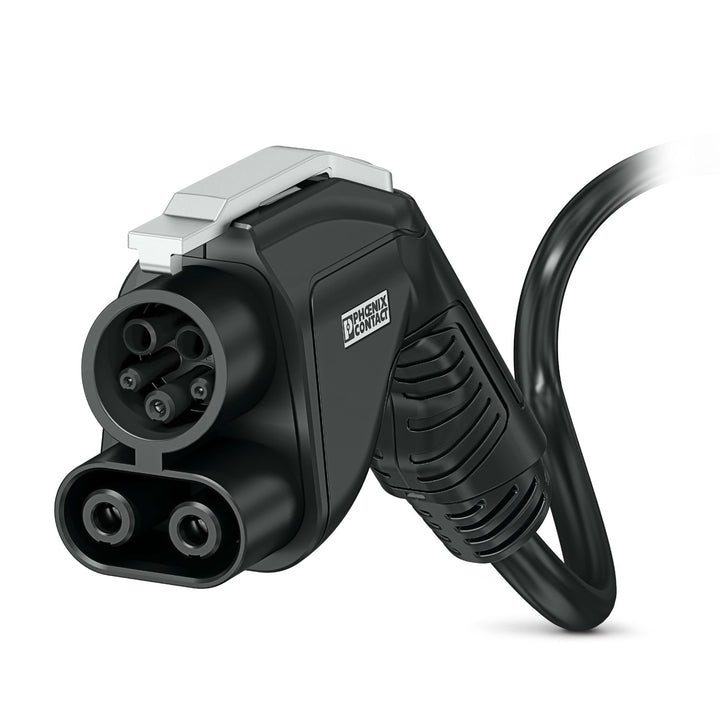

EV-T1G2CC-DC80A-7,0M6ASBK11 - DC charging cable / 1628423
CHARX connect compact, DC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with direct current (DC), with connected CS contact, with analog temperature sensors, CCS type 1, SAE J1772, IEC 62196-3, 80 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 7 m, black, straight
Product type
Made in: Germany
| Product type | DC charging cable |
| Product family | CHARX connect compact |
| Application | for charging electric vehicles (EV) with direct current (DC) |
| for installation at charging stations for electromobility (EVSE) | |
| Type | DC charging cable |
| with vehicle charging connector and open cable end | |
| Design | with connected CS contact |
| with analog temperature sensors | |
| Technology | Combined Charging System |
| Label | 8.9 mm x 28.9 mm (customer logo on request) |
| Charging standard | CCS type 1 |
| Charging mode | Mode 4 |
| DC level 2 |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121 |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 480 Ω (Lever actuated) |
| 150 Ω (Lever not actuated) | |
| Temperature monitoring | 2x Pt 1000 |
| Type of charging current | DC |
| Charging power | 80 kW |
| Charging current | 80 A |
| Power contact | |

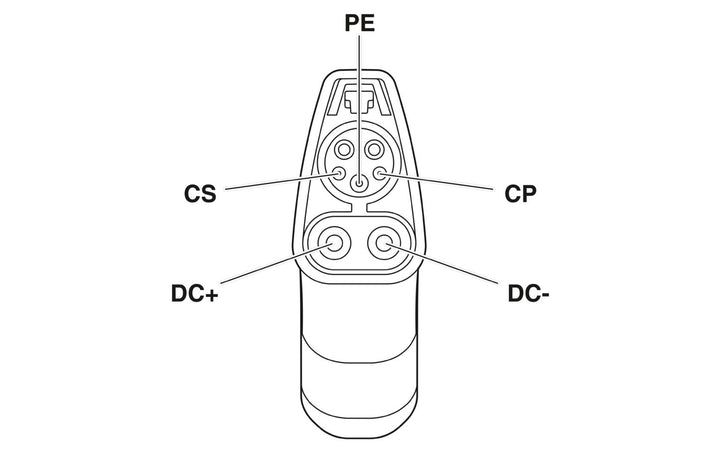

| Number | 3 (PE, DC+, DC-) |
| Rated voltage | 1000 V DC |
| Rated current | 80 A (up to 55 °C) |
| Signal contact | |
| Number | 2 (CP, CS) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Temperature sensors (Pt 1000) | |
| Sensor type | Pt 1000 |
| Standards/regulations | DIN EN 60751 |
| Attachment point | Sensor for the DC contacts |
| Switch-off temperature | 90 °C ±1 K (equivalent to a Pt 1000 value of 1346.5 Ω) |
| Long-term stability | 0.06 % (after 1000 hours at 130 °C) |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Coefficient | 3850 ppm/K |
| Ambient temperature | -50 °C ... 130 °C (Operation) |
| Vehicle charging connector | |

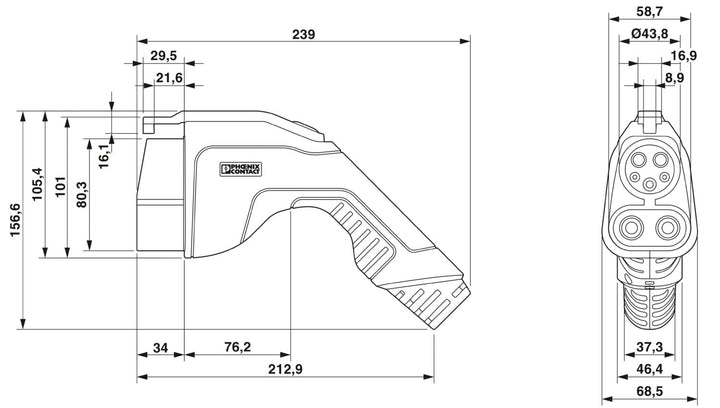

| Width | 68.5 mm |
| Height | 156.6 mm |
| Depth | 239 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE |
| Material (Contact surface) | Silver |
| Flammability rating according to UL 94 | V0 (Mating face) |
| Cable length | 7 m ±45 mm |
| Wiring standards/regulations | UL 62 |
| Cable weight | max. 915.00 kg/km |
| Cable type | Class 6 |
| Cable type | straight |
| Cable structure | 3 x 6 AWG + 2 x 3 x 18 AWG |
| External cable diameter | 27.00 mm ±0.4 mm |
| Outer sheath, material | TPE |
| Stripping length of the sheath | 140 mm ±10 mm |
| Stripping length | 140 mm ±10 mm |
| Cable resistance | ≤ 0.0014 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 405 mm (15x diameter) |
