Phoenix contact EV cable -T2M4CC-DC80A-7,5M16ESBK11 - DC charging cable (Phoenix contact)
Price Excl. Tax
Shipping & Tax calculated at checkout
Article number : 157747
EV-T2M4CC-DC80A-7,5M16ESBK11 - DC charging cable / 1169802

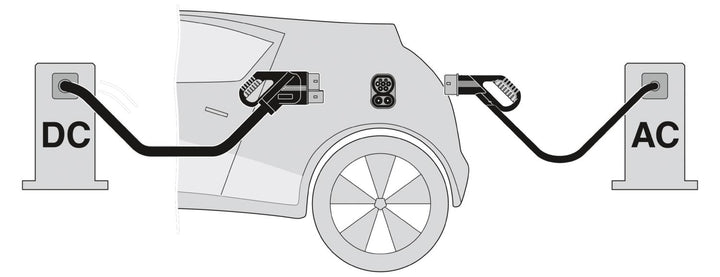

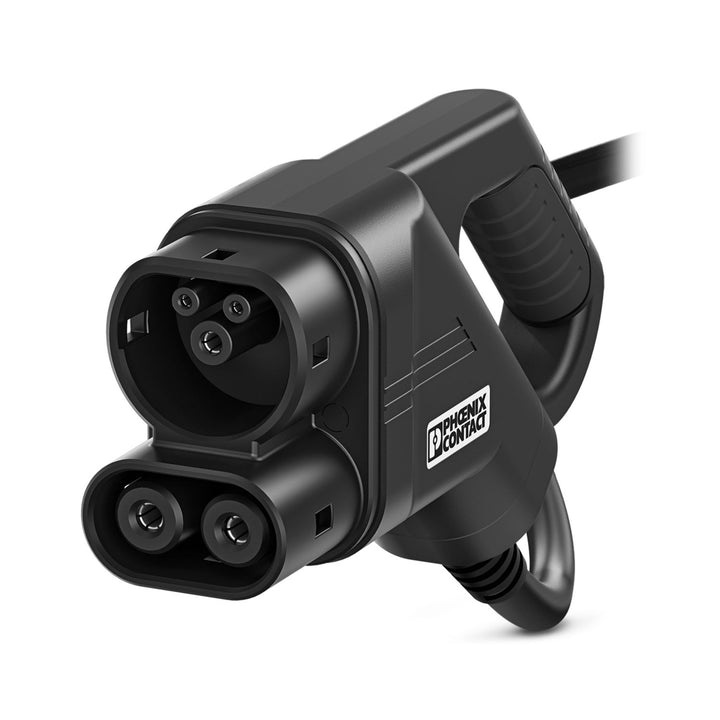

CHARX connect standard, DC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with direct current (DC), with connected PP contact, with replaceable mating face frame, with analog temperature sensors, CCS type 2, IEC 62196-3, 80 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 7.5 m, black, straight, NOTE: Cable management may be required.
Product type
Made in: Germany
Type 2
DC charging cable CCS type 2
CHARX connect standard
with connected PP contact
with replaceable mating face frame
Charging mode
Mode 4
Type of signal transmission
Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121
Note on the connection method
Crimp connection, cannot be disconnected
Temperature monitoring
2x Pt 1000
Charging power
80 kW
Charging current
80 A
Power contact

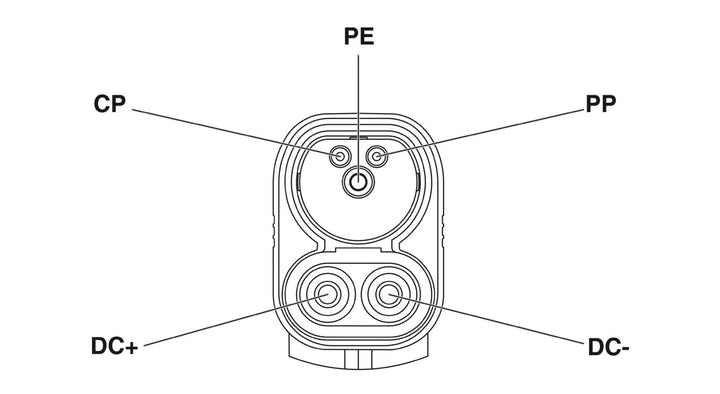

Number : 3 (PE, DC+, DC-)
Rated voltage: 1000 V DC
Rated current: 80 A (up to 40 °C)
Temperature sensors (Pt 1000)
Sensor type: Pt 1000
Attachment point: Sensor for the DC contacts
Switch-off temperature: 90 °C ±1 K (equivalent to a Pt 1000 value of 1346.5 Ω)
Long-term stability: 0.06 % (after 1000 hours at 130 °C)
Ambient temperature: -50 °C ... 130 °C (Operation)
Cable length: 7.5 m ±45 mm
Cable type: Class 6
Cable type: straight
Cable structure: 3 x 16 mm² + 3 x 2 x 0.75 mm²
External cable diameter: 21.20 mm ±0.4 mm
Outer sheath, material: TPE-U
Cable resistance: ≤ 0.00121 Ω/m (based on a power core, at an ambient temperature of 20°C)
Degree of protection: IP44
