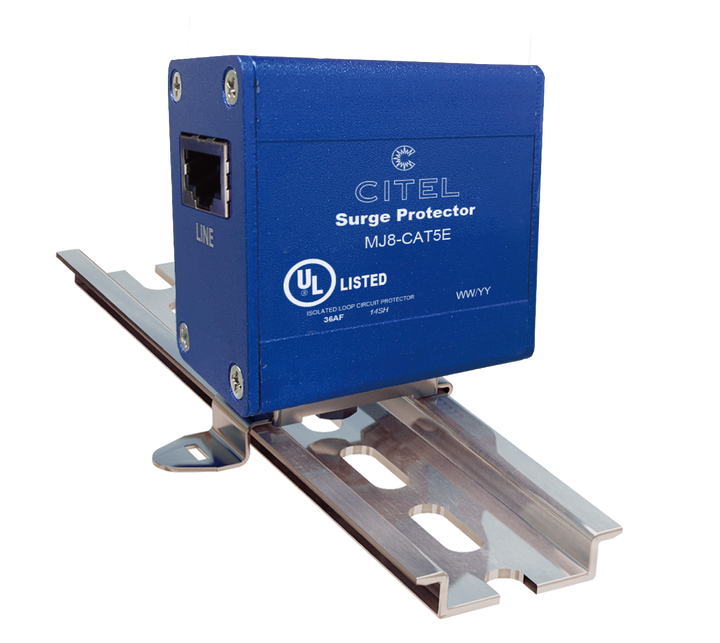

Citel Surge arrestor for Ethernet lines (MJ8-CAT5e)
Contact us for order this product
Article Number: 15711 Manufacturers part number 560201 Max. DC operating voltage Uc 8 Vdc Insertion loss < 1 dB Impulse current 2 x 10/350µs Test - D1 Category Iimp 500 A...
Reviews
Article Number: 15711
Manufacturers part number 560201
|
Max. DC operating voltage
|
Uc | 8 Vdc |
|
Insertion loss
|
< 1 dB | |
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 500 A |
|
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
|
In L/PE | 2000 A |
|
Capacity
Maximum
|
pF | <25 |
|
NOMINAL DC LINE VOLTAGE
|
Vdc | 5 |
|
MAX. DC LINE VOLTAGE
|
Vdc | 8 |
|
WIRES
|
8W+Shield+Ground | |
|
LINE CURRENT MAX
|
(A) | 1 |
|
AMBIENT MIN
|
(C) | -40 |
|
AMBIENT MAX
|
(C) | +85 |
|
PROTECTION LEVEL
|
(V) | 20 |
|
IMAX
8/20µs
|
(kA) | 16 |
|
MAX. DATA RATE
|
Gbps | 1 |
|
MAX. FREQUENCY
|
Mhz | 100 |
Product Description
- Cat.5,5E Surge Protector
- Hybrid GDT and Diode Technology
- Bi-Directional Protection
- Shielded Connector Configurations
- DIN Rail, Screw Lug, and Flange Mounting
- UL497B Listed
Choose CITEL – the trusted name in surge protection for your equipment and solar investments.
