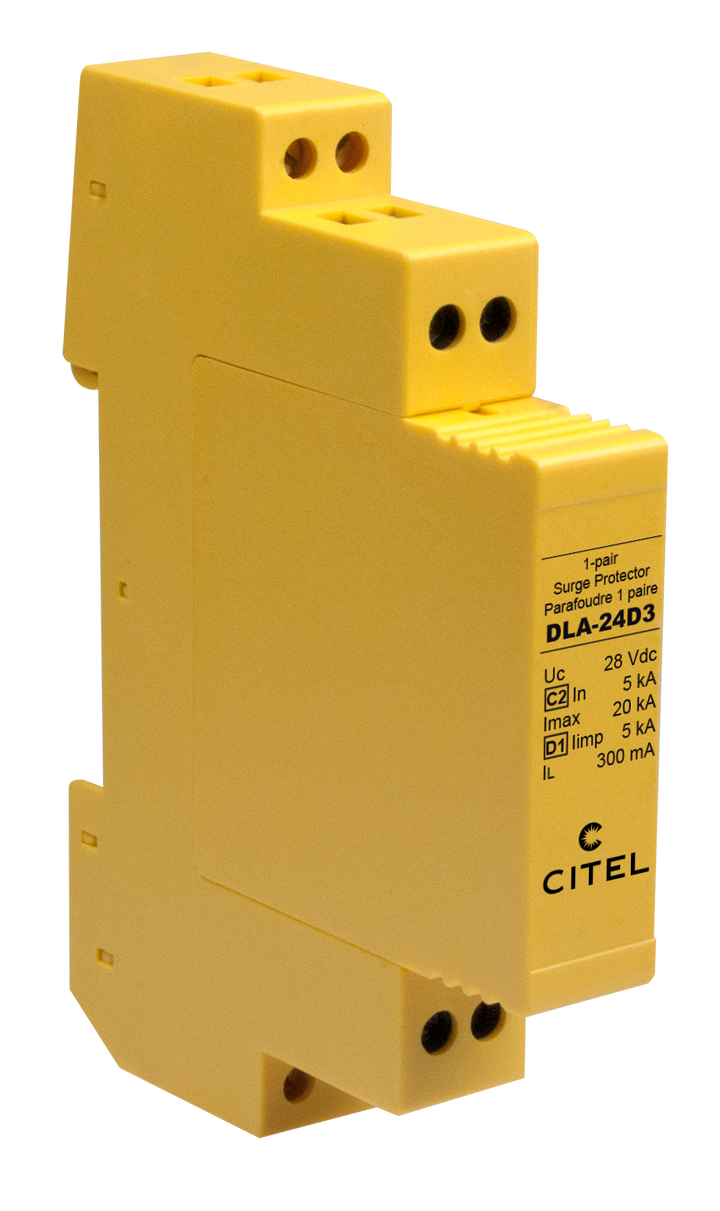

Citel Surge arrestor for data line (DLA-24D3)
Price Excl. Tax
Shipping & Tax calculated at checkout
Reviews
Product Description
Article Number: 15710
Manufacturers part number 6403011
|
Network
|
4-20 mA | |
|
Nominal line voltage
|
Un | 24 V |
|
Max. DC operating voltage
|
Uc | 28 Vdc |
|
Max. frequency
|
f max. | > 3 MHz |
|
Max. load current
@25°C
|
IL | 300 mA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 20 kA |
|
Line inductance
|
No | |
|
Protection level
@ In (8/20 µs)
|
Up L/L | 40 V |
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 5 kA |
|
Nominal discharge current
C2 Category
|
In | 5 kA |
|
Line resistance
|
< 4.7 Ohm |
DLA surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datelines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. D3 types aim to realize fine protection and D2 types is specific for floating application. These products are 1-pair surge protectors with removable module for easy maintenance.
Downloads
>> for further details CITEL surge protector>>
