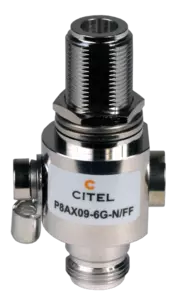

Citel P8AX09-6G-N/FF Coaxial surge protector DC-7 GHz
Contact us for order this product
Article Number: 157115 1 unit price Rs - 28500/- Minimum Order quantity -5 pcs Manufacturers part number 68011 Max. DC operating voltage Uc 120 Vdc Frequency range f DC-7 GHz Insertion...
Reviews
Article Number: 157115
1 unit price Rs - 28500/-
Minimum Order quantity -5 pcs
Manufacturers part number 68011
|
Max. DC operating voltage
|
Uc | 120 Vdc |
|
Frequency range
|
f | DC-7 GHz |
|
Insertion loss
|
< 0.2 dB | |
|
Return loss
|
≥20 dB | |
|
Impedance
|
50 ohms | |
|
VSWR
|
<1.25:1 | |
|
Max. load current @25°C
|
IL | 10 A |
|
Operating current
Continious current at Uc
|
Ic | None |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 15 kA |
|
Protection level
@ In (8/20µs)
|
Up | < 1100 V |
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 1 kA |
|
Nominal discharge current
C2 Category
|
In | 5 kA |
|
Max Power
|
25 W | |
|
Typical let through energy
(50 ohms) input 4kV 1.2/50μs - 2kA 8/20μs
|
2.2 mJ | |
|
DC Pass
|
Yes | |
|
Insulation resistance
|
IR | ≥10 GOhms |
Product Description
The P8AX series is based on gas discharge tube (GDT) and designed for RF line surge protection. Available for different power and with coaxial connectors, P8AX units could be provide in feedthrough mounting version and with various impedance.
- RF coaxial surge protector
- DC-7 GHz
- 25 W
- Connectors : N
- Low insertion loss
- Removale GDT
- DC-pass
- Bi-directional protection
- Description: Coaxial surge protector DC-7 GHz
- Standards compliance: IEC 61643-21 / EN 61643-21 / UL497E
- Technology: Gas discharge tube
- Max. DC operating voltage: 120 Vdc
- Frequency range: DC-7 GHz
- Max. discharge current : 15 kA
- Protection level : < 1100 V
>> for further details CITEL surge protector>>
Coaxial surge protector DC-7 GHz
