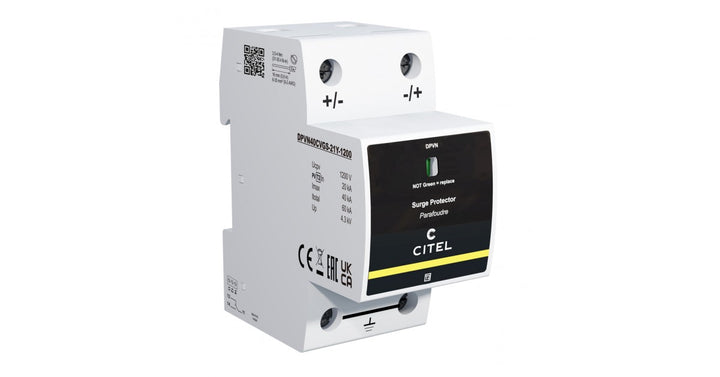

Citel DPVN40CVGS-21Y-1200 Type 2+3 surge protector for Photovoltaic
Contact us for order this product
Article Number: 157008 Manufacturers part number 65122102 SPD type IEC 2+3 Network PV 1000 Vdc Nominal PV voltage Uocstc 1000 Vdc Max. PV operating voltage Ucpv 1200 Vdc Residual Current Leakage current...
Article Number: 157008
Manufacturers part number 65122102
|
SPD type
|
IEC | 2+3 |
|
Network
|
PV 1000 Vdc | |
|
Nominal PV voltage
|
Uocstc | 1000 Vdc |
|
Max. PV operating voltage
|
Ucpv | 1200 Vdc |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
PV Permanent Operating current
Current consumption at Ucpv
|
Icpv | None |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 60 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 6 kV |
|
Current withstand short circuit PV
|
Iscpv | 15 000 A |
|
Connection mode(s)
|
+/-/PE | |
|
Protection mode(s)
|
Common/Differential mode | |
|
Protection level +/-
@ In (8/20µs)
|
Up | 4.3 kV |
|
Protection level +/PE (-/PE)
@ In (8/20µs)
|
Up | 4.3 kV |
|
Protection level at 5 kA
@ 5 kA (8/20µs)
|
Up | 3,5 kV |
|
Protection level at Uoc
@ Uoc (1.2/50 µs)
|
Up | 3,1 kV |
NEW CITEL PV SPD
The DPVN40VG is CITEL's new series of type 2+3 SPDs for photovoltaic applications. The development of these SPDs is based on two technologies, patented exclusively by CITEL. The VG Technology guarantees total absence of leakage current and maximum reliability. Using CTC Technology, the DPVN40VG incorporates a thermosensitive separation point placed at the center of the SPD, guaranteeing the safest disconnection on the market. The products are designed for DIN rail mounting. Compact and equipped with a fault indicator, these products are easy to install and maintain.
Choose CITEL – the trusted name in surge protection for your equipment and solar investments.
