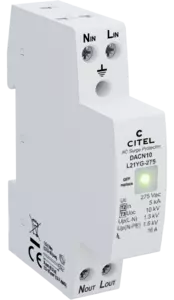

Citel DACN10-L21YG-275 Compact single-phase type 2 (or 3) surge protector - Monobloc
Contact us for order this product
Article Number: 157116 1 unit price Rs - 17300/- Minimum Order quantity -5 pcs Price Manufacturers part number 70115021 SPD type IEC 2+3 Network 230 V single-phase AC system TN Max....
Reviews
Article Number: 157116
1 unit price Rs - 17300/-
Minimum Order quantity -5 pcs Price
Manufacturers part number 70115021
|
SPD type
|
IEC | 2+3 |
|
Network
|
230 V single-phase | |
|
AC system
|
TN | |
|
Max. AC operating voltage
|
Uc | 275 Vac |
|
Max. load current @25°C
|
IL | 16 A |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac disconnection |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 5 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 10 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 10 kV |
|
Protection level L/N
@ In (8/20µs)
|
Up L/N | 1.3 kV |
|
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.6 kV |
|
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.6 kV |
|
Admissible short-circuit current
|
Isccr | 10 000 A |
Product Description
DACN10S-L AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. Unlike the DACN10S, the DACN10S-L incorporates an in-line safety disconnection and double output connection. The DACN10S-L provides common and differential mode protection and features an LED colour change from green to red at end of life. The DACN10S-L surge protector series is a single module DINRail mounted device designed to be installed close to the equipment being protected; it will normally be connected ‘downstream’ of a Type 1/2 'primary' surge protector.
>> for further details CITEL surge protector>>
