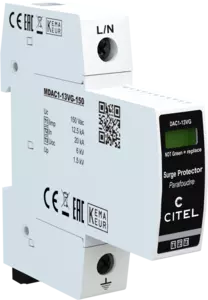

Citel DAC1-13VGS-10-150 Type 1 + 2 + 3 AC surge protector
Contact us for order this product
Article Number: 157010 Manufacturers part number 821730121 SPD type IEC 1+2+3 Max. AC operating voltage Uc 150 Vac Temporary Over Voltage (TOV) Characteristics - 5 sec. Without disconnection UT 180...
Reviews
Article Number: 157010
Manufacturers part number 821730121
|
SPD type
|
IEC | 1+2+3 |
|
Max. AC operating voltage
|
Uc | 150 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 180 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 230 Vac withstand |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 50 kA |
|
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 12.5 kA |
|
Impulse current N/PE
max. withstand 10/350µs
|
Iimp N/PE | 50 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 6 kV |
|
Specific energy by pole
max. withstand 10/350 µs
|
W/R | 40 kJ/ohm |
|
Protection level
@ In (8/20µs) and @ 6 kV (1,2/50 µs)
|
Up | 1.5 kV |
|
Residual voltage at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.4 kV |
|
Admissible short-circuit current
|
Isccr | 50 000 A |
Product Description
The DAC1-13VG is an extreme duty pluggable Type 1+2+3 SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod. Equipped with exclusive CITEL’s VG technology, the range achieves a high protection level, guaranteeing a maximum protection efficiency, an absence of follow and leakage currents, a simplification of use (no additional lightning protector required) and a maximum lifetime. The DAC1-13VG surge protectors are especially compact and available in multipolar versions to protect single or 3-phase AC networks, which makes them the best surge protection solution for Type 1 requirements.
Choose CITEL – the trusted name in surge protection for your equipment and solar investments.
