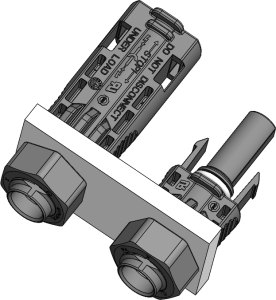

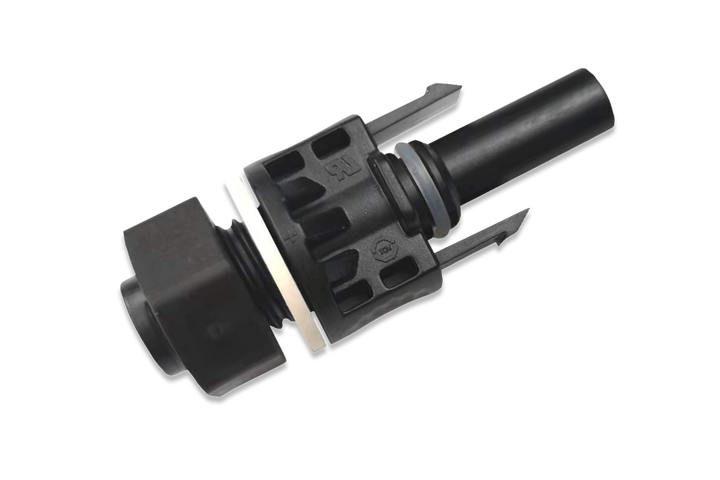

Amphenol Industrial H4 Series, Female, Panel Mount Solar Connector M12
1 unit price Rs 1192/-
Minimum order quantity 20 units per packing price Rs 23840/-
Article No: 15745
Manufacturers part number: H4CFM6DI
Technical details
| Type | Solar Connector |
| Gender | Female |
| Mounting Type | Panel Mount |
| Termination Method | Quick Connect |
| Plug/Socket | Socket |
| Thread Size | M12 |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Better World Claim | Renewable energy solution |
| Better World Product | Yes |
| Series | H4 |
Product Description
Amphenol Industrial Solar Technologies' H4 PV Panel Connector carries more amps than the industry standard connector. Available in four different gauges: 31A(2.5mm2, AWG14), 42A(4.0mm2, AWG12), 53A(6.0mm2, AWG10), 65A(10.0mm2, AWG8).
Fully makeable with UTX connectors
Long-term UV and Ozone resistance
High current rating
Low contact resistance means low power loss
Ready for field assembly
Long-term UV and Ozone resistance
High current rating
Low contact resistance means low power loss
Ready for field assembly
